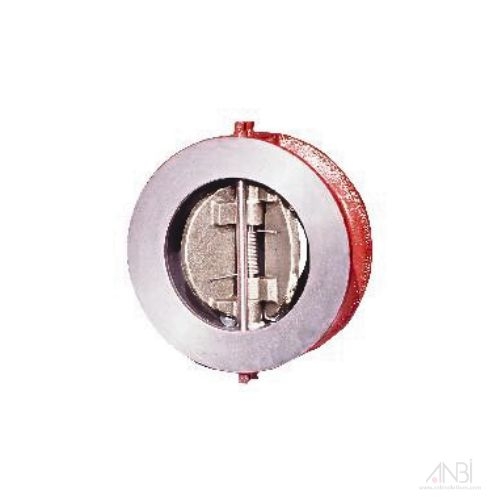

Check Valve Wafer Double Door CI Body SS304 Disc PN16
Model ICV-125-2-2-T
Item Code: WM1WCV001P
Features
• Lightweight & compact design
• Aluminum bronze disc plates
• EPDM seat bonded to body for leak tight sealing
• Silent check valve
• Complies with API 594
156.66
213.62
For Bulk Orders You May Click The Link To Reach Us
Series ICV-125-2-2-T Cast Iron Wafer Check Valves are used in commercial and industrial HVAC applications to prevent water hammer and reverse fluid flow in water lines.
They feature a cast iron body with aluminum-bronze disc plates, EPDM seat, PTFE bearings, stainless steel hinge and stop pins, steel plug and eye bolt, and stainless steel springs.
Maximum Pressure: 200psi (13.8 bar) CWP (non-shock).
Features
Prevents water hammer and reverse flow in HVAC applications
Lighter and more compact than conventional designs
EPDM seat is bonded to the body for leak tight sealing
Sizes: 2" – 12" (50 ‒ 300mm)
Specifications
Check valve shall be manufactured out of ASTM A126 Class B cast iron and comply with API 594.
Valve shall be pressure rated to 200psi (13.8 bar) for sizes 2" – 12".
Check valve constructed with aluminum bronze disc plate, EPDM seat, 316 stainless steel spring, and PTFE bearings.
Lead Free* cast iron wafer check valve shall be constructed using Lead Free* materials.
Lead Free ICV-125-2-2-T shall comply with state codes and standards, where applicable, requiring reduced lead content.
Valve shall be Watts Series ICV-125-2-2-T.
