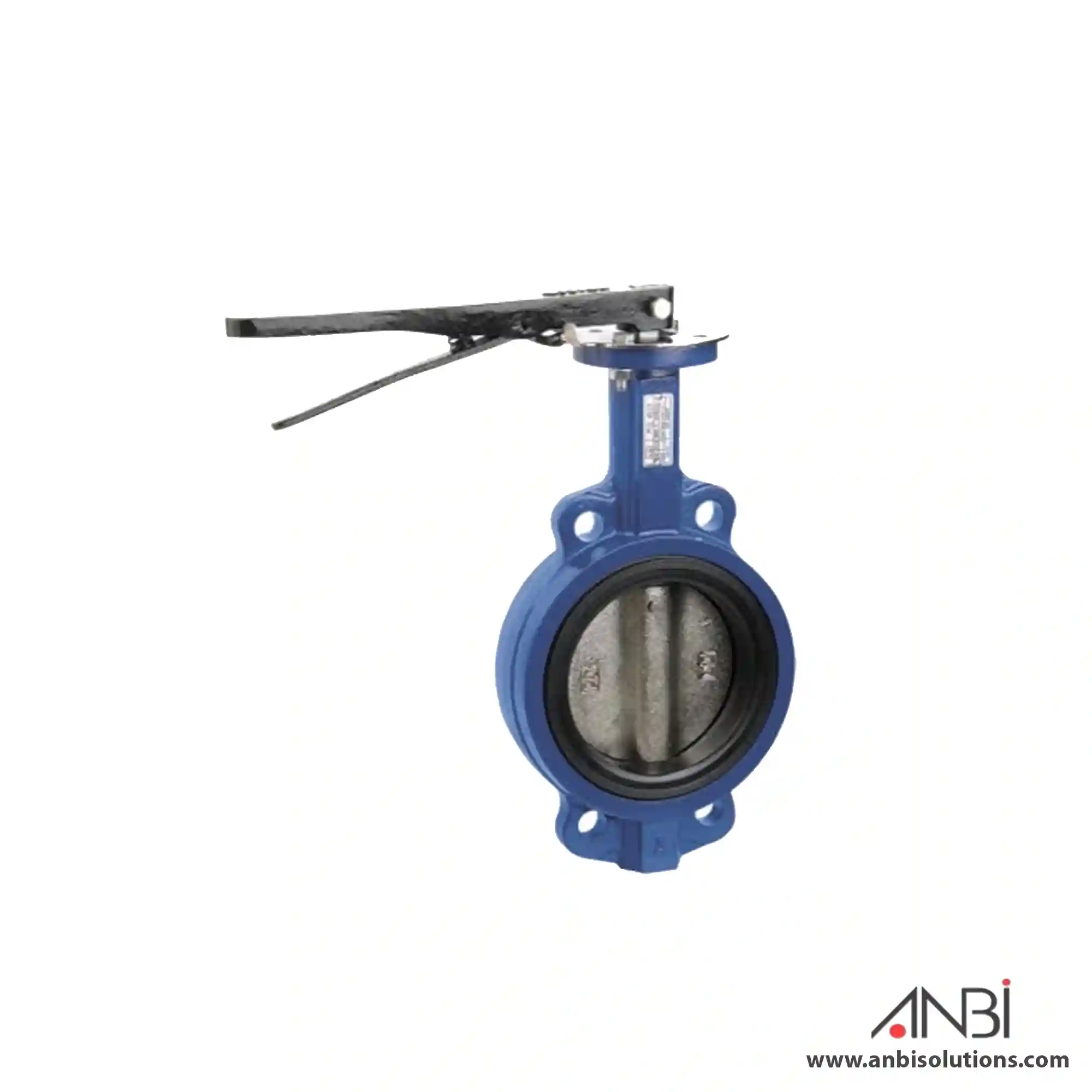

Ductile Iron Wafer Butterfly Valve (Ductile Iron Disc And Epdm Seat)
Ductile Iron Butterfly Valve Semi Lug Type, Ductile Iron Nickel Plated Disc, SS Stem, Epdm Lined Lever Operated PN16
VIR’s principal activity is the production and distribution of ball valves, both manual and actuated, balancing valves, gate valves and butterfly valves in brass, bronze, polypropylene and cast-iron for the distribution of water and gas to be applied in plumbing, conditioning, industrial and irrigation installations.
339.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
DUCTILE IRON BUTTERFLY VALVE,
SEMI LUG TYPE, DUCTILE IRON
NICKEL-PLATED DISC, SS STEM, EPDM
LINED, LEVER OPERATED, PN16
For EN1092 PN16 flanges (also PN10 for DN≤150)
Lengths according to EN558-1 series 20 (ex DIN3202 K1)
Design according to EN593
Testing according to EN12266-1
Epoxy coating (min. 150µm)
Nickel-plated ductile iron disc
EPDM seat, EPDM stem O-rings, PTFE bushing
With lever or manual gear
With ISO 5211 flange for electric or pneumatic actuator
TR CU 010 compliant
PN16 (PN10 for DN≥350)
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions:
Suitable for: water, -10°C to +110°C
below 0°C only for water with added antifreeze fluids
Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
| Size | 100mm, 125mm, 150mm, 50mm, 65mm, 80mm |
|---|
No reviews yet for this product.
