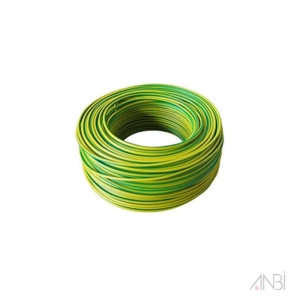

Cable designed for internal wiring in switch control
Relay and instrumentation panels of power switchgear and for purposes such as stationary
Static appliances
Internal connectors in rectifier equipment
Motor starters and controllers.
50.00
For Bulk Orders You May Click The Link To Reach Us
Technical Data
Voltage Rating: H05V-K 0.5 to 1 mm² – 300 / 500V, H07V-K 1.5 to 240 mm² – 450 / 750V
Temperature Range: -30°C to +70°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm: 4 x outer diameter
Approx. diameter > 8 to 12 mm: 5 x outer diameter
Approx. diameter > 12 mm: 6 x outer diameter
Test Voltage: 2500V
Construction
Conductor Class 5 flexible plain / metal coated stranded according to EN 60228. Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.
Properties
PVC self-extinguishing and flame retardant according to EN 60332-1-2
Cable Design Parameters
Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink,
12 – grey.
By adding the suffix (in place of ‘c’) for the conductor type required:
0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)
