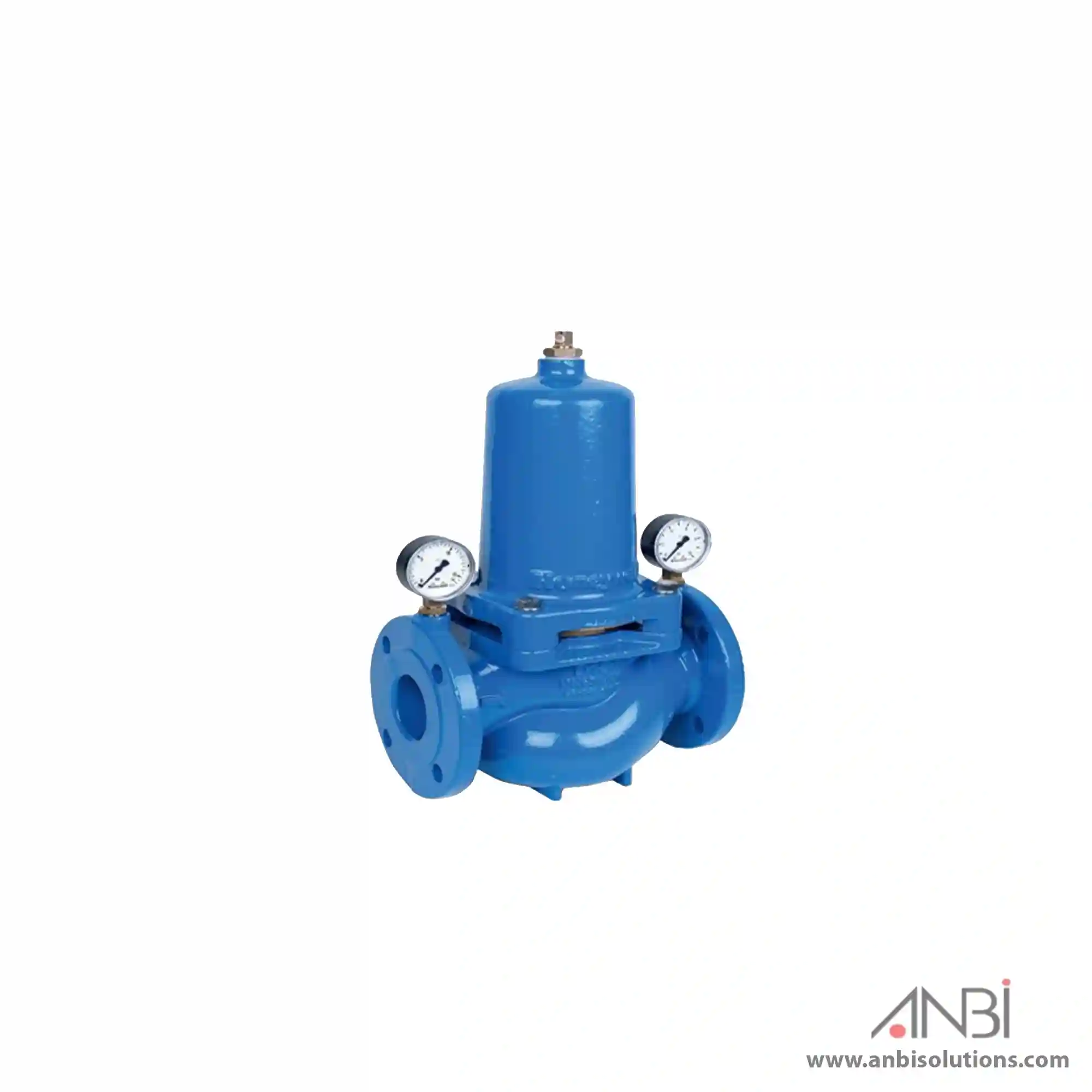

HONEYWELL Pressure Reducing Valve Ductile Iron PN16 D15S

Honeywell D15S PRV
EAN: 4019837137038
Weight (kg): 34.5
Type: diaphragm-controlled pressure reducer, PN 16, DN 100A pressure regulator protects plants against too high supply pressure. This can also be used in buildings for residential, industrial and commercial purposes, taking into account its specifications. When using a pressure reducer prevents pressure damage and the water consumption reduced. The set outlet pressure is maintained even at strongly fluctuating inlet pressures constant. By Reducing and keeping Constant the operating pressure can be minimized disturbing flow noise within the Installation. Requiring maintenance valve according to DIN EN 806-5.Approvals DVGW, WRAS, NF, KIWA – and SVGW-certified for DN65 to 100. ACS and WRAS applied for DN150 to 200.
Medium Water/Air
Medium water, compressed air according to ISO 8573-1 class 2 in consideration of valid Standards(e.g. EN 12502)
Housing material ductile iron
Material spring bonnet of ductile iron
Coating powder coated
Pipe Connection Flanges
Max. Medium temp. 65 °C
Stat. Pressure PN16
– Relieved single-seat valve Yes
