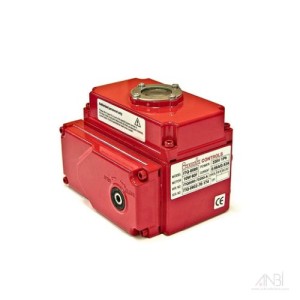

Type: Electric Quarter-Turn Actuator
Series: ITQ (Economic Style)
Model: ITQ 80 (ITQ0080)
Function: ON/OFF automation for valves (ball, butterfly, dampers)
Mounting: Direct mount to valve via ISO 5211
2,482.00
17.50/month or 4 interest-free payments
For Bulk Orders You May Click The Link To Reach Us
- Newly designed and developed for especially small ball & plug valves and damper automation.
- A self-locking combination of spur and worm gears that requires no brake
- The motor is a specially designed induction motor that produces high starting torques and is thermally protected from overheating
- Mechanical Stopper bolts to prevent over-travel
- Easy set cams without a special tool.
- Manual operation by wrench directly to the worm gearbox and dial position indication
Key Features
Compact and lightweight design
High output torque with an efficient gear system
Self-locking worm gear (no brake required)
Manual override for emergency operation
Reliable motor with thermal protection
Suitable for continuous and modulating duty
