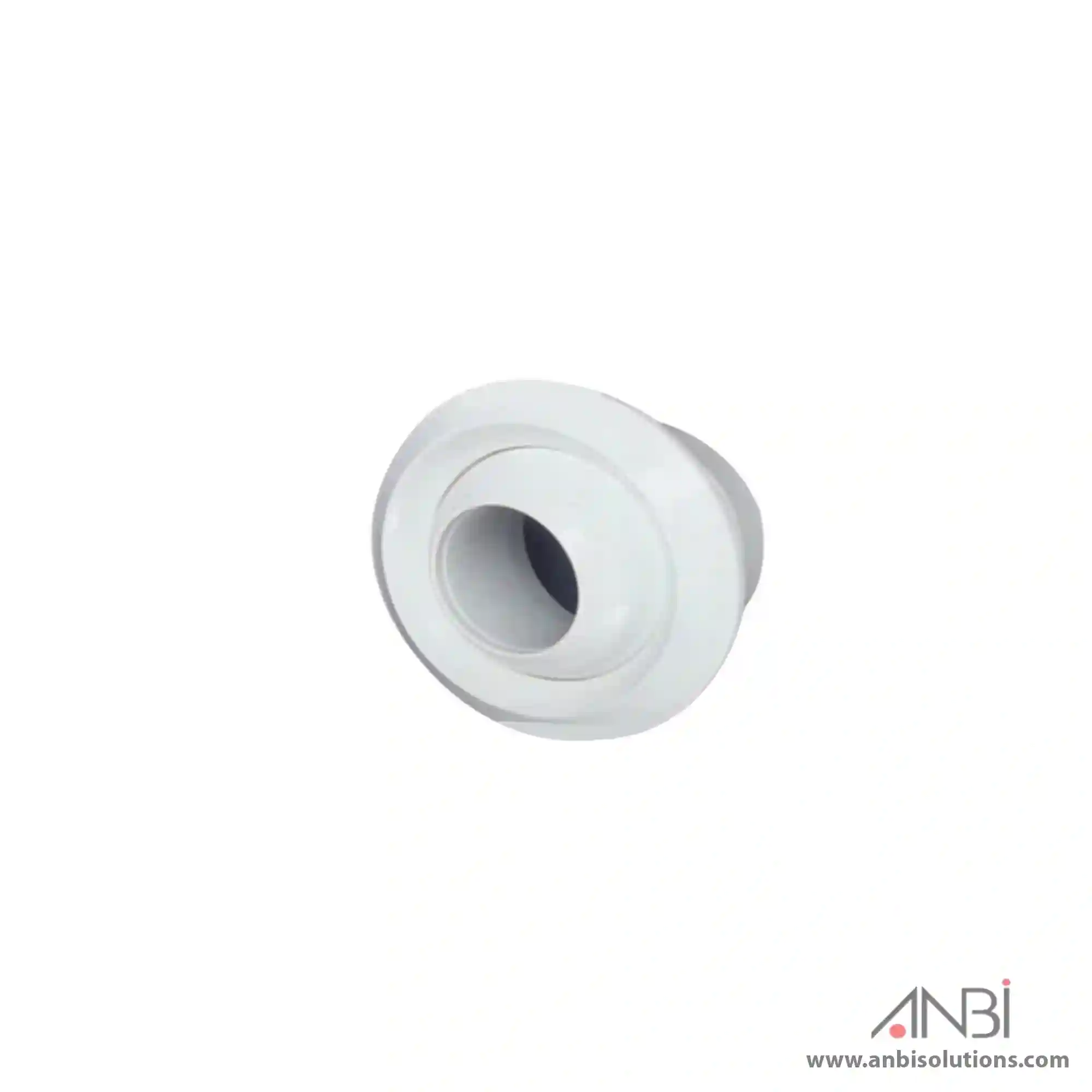

Jet Diffuser Eye Ball ANBI

ANBI Eyeball Jet Nozzle Diffusers are highly suitable for delivering a high stream of air over long distances. Its ability to deliver an accurate airstream makes it suitable for spot cooling applications. Its angular movement allows the air stream to be delivered through a wide area of direction either in full jet position or in reduced jet position.

The Jet Nozzle Diffusers spout is fully reversible, rotating through 180 degrees. Jet Nozzle Diffusers can be fixed directly to the round ductwork. The gasket is sealed around the back of the

Jet Nozzle Diffusers to avoid air leakage.

Jet Nozzle Diffusers are suitable for large spaces or area with high ceilings, such as theatres, concert halls, gymnasiums, mall atriums, exhibition halls, etc. Multiple Jet Nozzle Diffusers can be integrated into a single panel for large volumes of air. The design of the Jet Nozzle Diffusers allows for a long distance throw along with trajectory control

ANBI Jet Nozzle Diffusers are also available with manual or motorized operation. For the motorized operation, an actuator is provided to control the direction of the spigot.  ANBI Jet Nozzle Diffusers are available in various colors of the client’s choice, that will suit the aesthetics of the area of application. Jet Nozzle Diffuser is available from 160mm dia to 400 mm dia.

Standard finishes

•  Powder coated color finish as per RAL color codes.
•  The flexibility of finishing available as an option.

Fully reversible spout with 180 degrees rotation.

The diffuser can be fixed directly to the round duct.

Jet nozzle section is mounted in an aluminium square plate covered by the flanged border.
